Deploy iflearner-flow on the kubernetes cluster¶

1. General introduction¶

1.1 System introduction¶

Iflearner Flow is a multi-party joint task security scheduling platform based on the underlying federated learning framework Iflearner, which models horizontal federated learning scenarios.

1.2 Component Description¶

Server side

Component	Version	Description
kubernetes	1.18	Container orchestration cluster, flow-server dependency
mysql	5.7	data storage, flow-server dependency
ifleaner-flow-server	0.1.0	server-side scheduling component
ifleaner-operator	0.0.1	kubernetes crd contorller

Federate side

Component	Version	Description
kubernetes	1.18	Container orchestration cluster, flow-server dependency
mysql	5.7	data storage, flow-server dependency
ifleaner-flow-federate	0.1.0	federate-side scheduling component
ifleaner-operator	0.0.1	kubernetes crd contorller

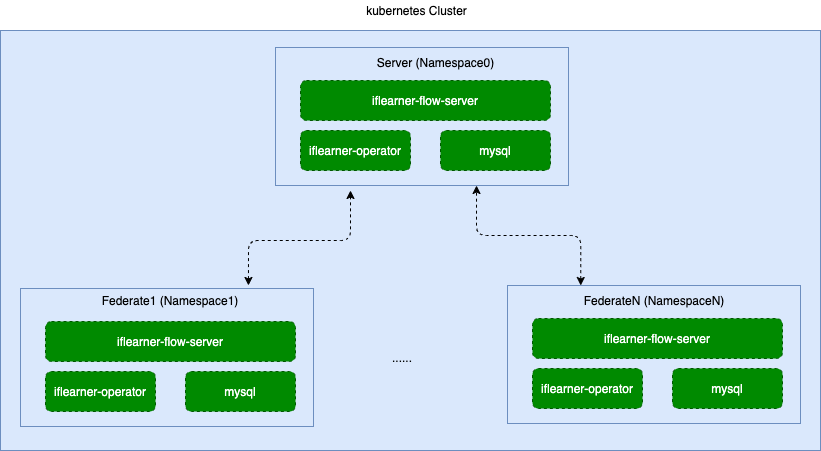

1.3 System Design¶

Iflearner Flow Design

2. Detailed design¶

2.1 Deployment Planning¶

In this example, for the convenience of demonstration, there is only one host on the service side, and the federation side. In fact, relying on kubernetes, the cluster size on each side can be freely expanded.

Service side

IP Address Operating System Host Configuration Storage Deployment Modules

172.31.0.1 CentOS 7.4 16C32G 100G kubernetes, mysql, iflearner-flow-server

Federal side

Federation	IP Addresses	Operating Systems	Host Configuration	Storage	Deployment Modules
Federation 1	172.31.0.2	CentOS 7.4	16C32G, one GPU card (not required)	100G	kubernetes, mysql, iflearner-flow-server, iflearner-opeartor
Federation 2	172.31.0.3	CentOS 7.4	16C32G, one GPU card (not required)	100G	kubernetes, mysql, iflearner-flow-federate, iflearner-opeartor
> Only the scene with only two federations is demonstrated here, which can be expanded freely

2.2 Host resources and operating system requirements¶

Category	Description
Host configuration	Not less than 8C, 31G, 50G, Gigabit network card, preferably GPU card for training acceleration
Operating System	CentOS linux 7.4 and above
File System	1. The persistent data disk is mounted in the /data directory by default. 2. The free space of the root directory is not less than 20G.
System Parameters	1. The number of file handles is not less than 65535. 2. The number of user processes is not less than 65535.

2.3 Network Requirements¶

Category	Description
Firewall Policy	1. Firewall devices need to support long connections and unlimited connections.

3. Project deployment (deployment in real scenarios)¶

In a real scenario, all parties are isolated and need to deploy a set of kubernetes clusters.

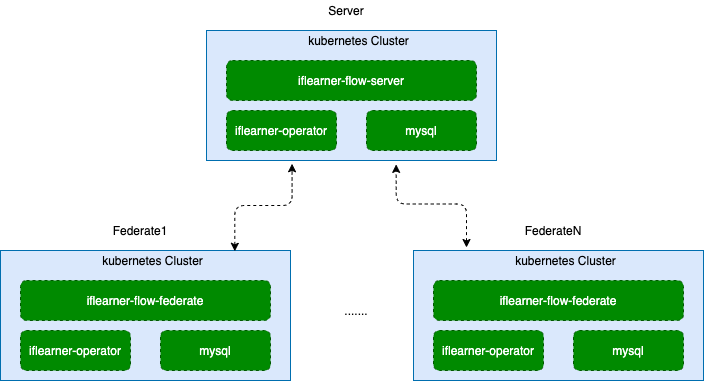

3.1 Deployment Diagram¶

3.2 Service side deployment¶

3.2.1 Deploy kubernetes¶

Recommend a minimalist one-click deployment method sealos

Currently supported version is 1.18

3.2.2 Deploy iflearner-operator¶

See iflearner-operator

3.2.3 Deploy iflearner-flow-server¶

We provide a minimalist deployment method, please refer to flow-server deployment and operation guide

3.3 Federal side deployment¶

The implementation steps of each federal party are consistent, and the following are the implementation steps under a single federal party

3.3.1 Deploy kubernetes¶
